Applications of carbon fiber reinforced thermoplastic composites in robotics
Dec 03, 2025
Carbon fiber reinforced thermoplastic composites (CFRPs) are far more than simple material alternatives; they are key enabling technologies driving robotics towards greater efficiency, flexibility, and intelligence. From reducing the weight of robotic arms to enhance dynamic performance, to enabling one-piece molding of complex shells to simplify assembly, and extending the durability of mobile robots, the value of CFRTPs permeates every stage of robot design, manufacturing, and application. For robotics engineers, understanding and utilizing such materials will be a powerful tool for creating differentiated products in a competitive market. Partnering with companies like Xiamen Carbon, with its deep technical expertise, comprehensive product portfolio, and reliable service support, provides a solid and reliable "material pillar" for your innovation journey. The potential of CFRTPs is only beginning to emerge as we face the limitless applications of future robots.
Lightweight, High-Strength, Rapid Prototyping: Unlocking the Key to Next-Generation Robot Design and Manufacturing
As robotics moves from factory fences to broader service, healthcare, and even home environments, unprecedented challenges are being placed on materials: How to achieve extreme weight reduction without sacrificing strength and durability? How to achieve components with complex geometries while enabling rapid, low-cost mass production? Traditional metallic materials often cannot meet these requirements. A type of composite material called carbon fiber reinforced thermoplastic is quietly leading a revolution in the "slimming" and "strengthening" of robots. This article delves into how carbon fiber reinforced thermoplastic composites, with their unique performance advantages, are reshaping the design concepts of robot joints, arms, shells, and even dexterous hands. It also analyzes how solutions from leading manufacturers such as Xiamen Carbon, using the CF-RT PA series and SCF-RTP series, become crucial support for engineers in translating innovative ideas into reliable realities.
1. A Conversation with Robotics Engineers: Why Choose Carbon Fiber Reinforced Thermoplastic Composites?
Imagine a heated discussion about material selection in a robotics design studio.
Structural Engineer Wang (pointing to a computer-simulated stress diagram): “The sixth-axis end effector of our collaborative robot must weigh less than 500 grams, yet withstand a continuous 5-kilogram gripping load and repeated impacts. The aluminum alloy solution is 20% overweight, while engineering plastics lack the necessary rigidity, leading to excessive deformation over long-term use.”
Process Engineer Li: “If we use traditional thermoset carbon fiber composites, the performance meets the standards, but the mold costs are high, the production cycle is too long, and the waste cannot be recycled. This doesn't align with our philosophy of sustainable production and rapid prototype iteration.”
Purchasing Manager Ms. Zhang: “Cost control is also critical. We need a solution that achieves the optimal balance between performance, production efficiency, and total cost of ownership.”
At this moment, Materials Expert Dr. Zhao walks in and writes “Carbon Fiber Reinforced Thermoplastic Composite (CFRTP)” on the whiteboard. He explained, “The dilemma you face is precisely where CFRTP excels. It combines the superior reinforcement of continuous or chopped carbon fibers with the ease of processing a thermoplastic polymer matrix. Specifically:”
Dr. Zhao summarized, “For highly technical fields like robotics, thermoplastic carbon fiber composites offer a near-perfect solution for dynamic performance, energy efficiency, and agility. They not only make robots lighter, faster, and more energy-efficient, but also enable the mass production of high-performance components through efficient injection molding processes.” This conversation clearly demonstrates that carbon fiber composites, especially their thermoplastic branch CFRTP, are becoming core materials for solving the pain points of modern robot design.
2. Top Ten Applications: How CFRTP Empowers Robot Innovation
The properties of carbon fiber reinforced thermoplastic composites make them shine in the robotics field. Here are ten key applications, along with representative material series suitable for each scenario:
1. Robotic Arms and Links
The robotic arm is the core moving part of a robot, and its weight directly affects speed, accuracy, and energy consumption. Tubular or specially shaped links made of CFRTP ensure high stiffness and strength while significantly reducing weight. For example, in SCARA robots, lightweight upper and lower arms can significantly reduce inertia, improving repeatability and cycle speed. Representative materials: CF-RT PA series (such as PA6/66 base, high rigidity, good fatigue resistance), LCF-RTP series (long carbon fiber reinforcement, suitable for high-load structural components).
2. Joint Housing and Reducer Mounting Robot joint modules integrate motors, reducers, and sensors into a compact structure. CFRTP one-piece molded housings not only protect internal precision components but also ensure long-term stability of gear meshing accuracy due to their high rigidity and low coefficient of thermal expansion, reducing deformation caused by temperature rise or stress. Representative materials: CF-RT PA series (good rigidity and dimensional stability), SCF-RTP series (short carbon fiber reinforcement, good flowability, suitable for complex thin-walled shells).
3. End-effector (Gripper) Frame Lightweight end-effectors reduce the inertia of the arm end, making robot movement more agile and energy-efficient. CFRTP frames ensure clamping rigidity while providing flexible design integration space for cylinders, sensors, and finger mounts, enabling integrated internal channel designs. Representative materials: SCF-RTP series (easy to mold complex geometries), CF-RT PA series (high strength, wear resistance).
4. Mobile Robot Chassis and Frame
For mobile robots such as AGVs and AMRs, a lightweight chassis means longer battery life and better obstacle-crossing ability. CFRTP frames have high specific stiffness, effectively supporting the weight of batteries and controllers, and resisting ground impacts and vibrations. Representative materials: LCF-RTP series (excellent shock and energy absorption performance), CF-RT PA series (balanced overall mechanical properties).
5. Sensor Protective Housings and Mounts
Precision sensors such as LiDAR and vision cameras have extremely high requirements for installation stability and lightweight design. CFRTP's low density and adjustable coefficient of thermal expansion make it ideal for manufacturing lightweight, non-deformable mounts, ensuring accurate sensor data. Representative materials: SCF-RTP series (high-precision molding, good dimensional stability), special low-warpage CFRTP performance.

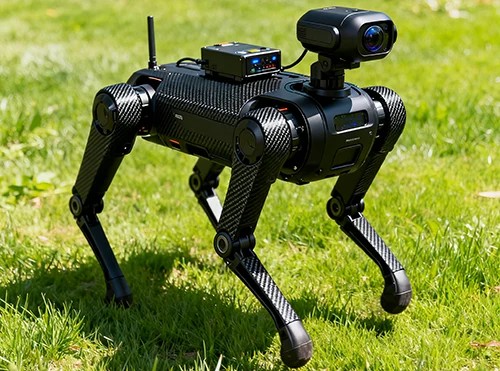

6. Bionic Robot Structures and Exoskeletons
Bionic robots strive to approximate the motion compliance and energy efficiency of living organisms. CFRTP can achieve anisotropic mechanical properties through layup design, simulating the stress characteristics of bones or fascia, while simultaneously enabling complex bionic designs. This is crucial for the wearing comfort and assistive efficiency of rehabilitation exoskeletons. Representative materials: Custom-laid continuous carbon fiber reinforced thermoplastic prepregs or sheets, and LCF-RTP series.
7. Drone Arms and Fusels
Drones are essentially flying robots. CFRTP experience in the aerospace field can be directly applied to manufacturing high-rigidity, fatigue-resistant arms and impact-resistant fuselage frames, thereby maximizing the payload-to-durability ratio. Representative materials: High-performance CF-RT PA series (e.g., high-temperature PA), continuous fiber reinforced thermoplastic composites.
8. Robot Panels and Decorative Components
In addition to structural components, CFRTP can also be used for robot outer panels. Their matte or glossy surfaces offer a premium feel and provide electromagnetic interference (EMI) shielding, protecting internal electronics from interference, while being lighter and non-corrosive compared to metal panels. Representative materials: SCF-RTP series (good surface quality, electroplating or painting available), conductive carbon fiber composites.
9. Lightweight Gears and Transmission Components
Through special formulations and lubrication modifications, certain CFRTP materials can be used to manufacture gears, bearings, and pulleys for low-speed, light-load applications. These components are self-lubricating, low-noise, and lightweight, making them ideal for noise- and weight-sensitive robotic applications. Representative materials: Wear-resistant modified CF-RT PA series or PEEK-based CFRTP.
10. Modular Connectors and Interface Components
Modular robots require many lightweight, robust, and precise connection components. CFRTP can be injection molded into one-time-use connectors with snap-fit and threaded inserts, ensuring reliable connections with minimal weight. Representative materials: SCF-RTP series (high flowability, high dimensional accuracy, creep resistance).
3. Xiamen Carbon CF-RTP Solution: Quality, Performance, and Comprehensive Support
Among numerous suppliers of carbon fiber reinforced thermoplastic composites, Xiamen Carbon (Xiamen Carbon New Materials Co., Ltd.) stands out for its deep understanding of materials science and customer-centric service. Our CFRTP materials are not simply a mixture of base resin and carbon fiber, but high-performance products resulting from precise design and rigorous process control.
Superior Quality and Verifiable Performance
Take our flagship CF-RT PA series. For example, a typical grade with 30% carbon fiber content can achieve tensile strength exceeding 200 MPa and flexural modulus exceeding 15 GPa, while the density is only about 1.3 g/cm³. This represents several times the strength compared to unreinforced nylon and approximately 50% weight reduction compared to aluminum alloy of the same volume. This high specific strength and specific modulus are exactly what robotic structural components dream of. Our SCF-RTP series is specifically optimized for flowability and molded surface quality, ensuring perfect filling of complex thin-walled parts with an outstanding appearance.
Clear Product Classification, Precise Application Matching

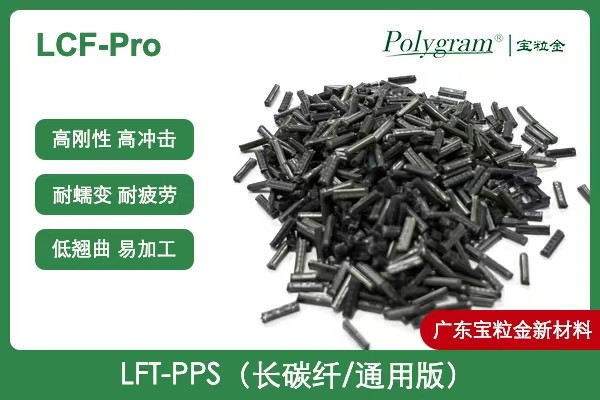

By visiting www.carbonele.com, you can clearly understand our CFRTP product matrix: CF-RT PA series (nylon-based, balanced, general-purpose), SCF-RTP series (short fiber, suitable for complex parts), and LCF-RTP series (long fiber, ultra-high impact strength and rigidity). We not only offer standard grades but also develop customized solutions based on customers' specific robot application scenarios (e.g., high and low temperature environments, chemical corrosion resistance, damping/vibration reduction requirements), providing a complete solution from material selection and structural design to process parameter recommendations.
Comprehensive Advantages Compared to Unreinforced Materials
Compared to ordinary engineering plastics or metals, our carbon fiber composites offer a comprehensive range of advantages:
Weight Reduction and Increased Efficiency: Directly improves robot speed and accuracy while reducing energy consumption.
Design Freedom: Unleashes engineers' design potential, enabling one-time functional integration of parts.
Reliable Performance: Excellent fatigue resistance, creep resistance, and dimensional stability ensure long-term reliable robot operation.
Production Efficiency: Suitable for rapid injection molding, helping customers shorten time to market.
Full-cycle service: From technical consultation, sample provision, pilot testing to mass production and after-sales technical support, we provide seamless services to ensure the smooth progress of our clients' projects.
4. In-depth insights and practical verification
1. Expert insights: Industry trends and real-world cases. A report by the International Federation of Robotics (IFR) states that lightweighting is a core development trend for next-generation robots, especially collaborative robots (Cobots) and mobile robots. Materials expert Professor Zhang points out: "The recyclability of materials (CFRTP) is becoming increasingly important for robot manufacturers in Europe and North America. This is not only a technological advantage but is also becoming a green threshold for market entry." A well-known domestic collaborative robot manufacturer widely uses thermoplastic carbon fiber composite materials in the arm links and joint shells of its latest seven-axis robot, successfully reducing the total weight by 15% and increasing the maximum motion speed by 20%, receiving extremely positive market feedback.
2. Scientific Data Support
Research published in the journal *Composite Materials Part B: Engineering* shows that robot links made of long carbon fiber reinforced polyamide (similar to the LCF-RTP series) retained 35% more stiffness than aluminum alloys after millions of fatigue tests, while reducing weight by 42%. Another study on damping performance shows that a specific formulation of CFRTP has a damping coefficient 2-3 times that of 6061 aluminum alloy, effectively absorbing high-frequency vibrations during robot movement, improving motion smoothness and service life.
3. Practical Operation and Case Integration
When providing services to a German robot gripper manufacturer, our engineering team recommended the SCF-RTP series through simulation analysis. The customer successfully used this material with microporous foam injection molding to manufacture lightweight gripper bodies containing complex internal ribs and sensor mounting points. Compared to the original aluminum solution, the weight was reduced by 55%, and the single molding cycle time was only 45 seconds, achieving a win-win situation in performance and cost. This demonstrates that Xiamen Carbon has the ability to provide customers with high-quality products by relying on a professional R&D team and modern factories. Carbon Fiber Reinforced Thermoplastic Composites: One-Stop Solution.
In another case, a US medical robotics startup needed a material that combined biocompatibility (sterilizability) and high stiffness for surgical instrument arms. We jointly developed a carbon fiber composite based on special medical-grade PEEK that perfectly met their stringent clinical requirements.
4. User Feedback
Alex, Purchasing Director, Italian Automation Integrator: “We sourced CF-RT PA series materials from Xiamen Carbon to support the chassis modules of our Autonomous Mobile Robot (AMR). The material consistency is excellent, and injection molding production is very stable. The weight reduction extended our AMR's runtime on a single charge by at least 1.5 hours, and the customer is very satisfied.”
Sophie, Materials Engineer, Korean Humanoid Robot R&D Company: “When developing a biomimetic knee joint structure, we needed materials with anisotropic mechanical behavior. Technical support and customized samples from Xiamen Carbon's LCF-RTP series helped us achieve components with the mechanical properties of closed human ligaments through special mold design and injection molding processes.”This is crucial for the project's breakthrough.
Michael, founder of an American drone company: "Lightweight is the lifeblood of drones. We've tested CFRTP materials from many suppliers. Xiamen Carbon's product achieves the best balance between specific strength and impact resistance, and is more competitively priced. Their technical support team responded quickly and helped us optimize the arm design to reduce stress concentration." 5. Frequently Asked Questions: Frequently Asked Questions
Q1: What are the main differences between carbon fiber reinforced thermoplastic composites (CFRTP) and thermoset carbon fiber composites?
A: The core difference lies in the polymer matrix. CFRTP uses thermoplastic resins such as nylon (PA), polypropylene (PP), and PEEK, which can be melted and repeatedly heated and molded, resulting in a short processing cycle and recyclability. Thermoset composites use resins such as epoxy resins or unsaturated polyesters, which cure irreversibly, have long molding cycles, and are difficult to recycle, although they can provide higher ultimate strength and modulus.
Q2: In robotic applications, how to choose between short carbon fiber (SCF) and long carbon fiber (LCF) reinforced thermoplastic composites?
A: The SCF-RTP series has good flowability and is suitable for parts with complex shapes, thin walls, and high surface requirements (such as housings and mounts). The LCF-RTP series... Retaining longer fiber lengths provides higher impact resistance, creep resistance, and overall structural strength, making it suitable for load-bearing and impact-resistant structural components (e.g., robotic arms, linkages).
Q3: Are there any special requirements for mold design when injection molding robot parts with CFRTP?
A: The orientation of the carbon fiber and its wear properties must be considered. The gate design and runner system should minimize excessive fiber shear and inconsistent orientation to avoid warping caused by anisotropic shrinkage. Mold cavities and runners require more wear-resistant steel (e.g., H13) and may require surface hardening treatment.
Q4: Does Xiamen Carbon provide UL or RoHS certification documents for its CFRTP materials?
A: Yes. Many of our standard material grades come with RoHS and REACH compliance declarations. For customers requiring UL certification or specific industry certifications (e.g., medical, food contact), we can provide relevant test reports or assist with the certification process.
Q5: Can you provide small-batch material samples and support for the small-batch R&D phase of robot projects?
A: Absolutely. We strongly support innovative research and development and can provide small-batch samples (typically 1-5 kg) of various grades, along with basic Technical Data Sheets (TDS), for eligible R&D projects. Our application engineers can also provide initial technical advice to assist with material selection.
